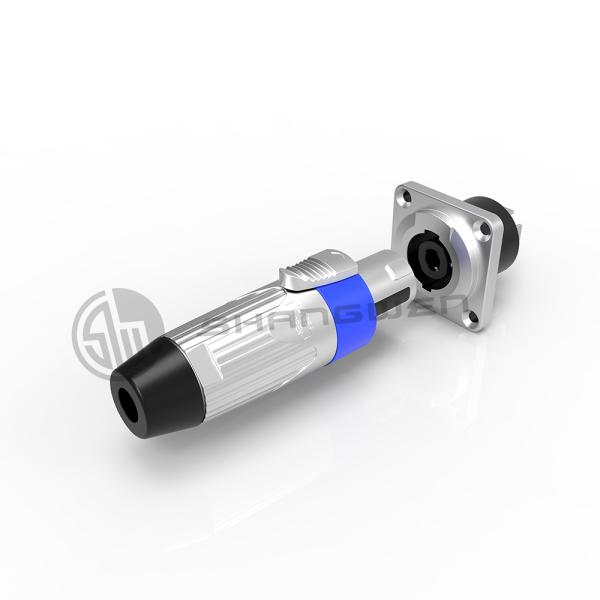

Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector

Name: Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector
Brand: SHANGWEN
Price: 3.20 USD

China Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector wholesale

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW4SMZ-M-2

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 10

Price : $3.20/pieces 2-99 pieces

Type : Loudspeaker Connector

Gender : Male

Industrial electronics : accessories

Feature : Waterproof

Contact Now

China Manufacture Square Shape Four Thru Holes Loudspeaker Connector 4 Pins Male Connector

Products Description

4Pin Loudspeaker chassis -Metal material

Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector

Model:SW4SMZ-M-2

☑The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
☑Sophisticated "quick lock" system
☑Airtight design - optimized for speaker applications
☑Equipped with internal gasket, protection class up to IP54 in connection state

1.Product parameters

Connection Type	Speaker
Gender	Male

2.Electrical parameters

Contact resistance	＜2mΩ
Dielectric strength	2.8kVac
Insulation resistance	> 1.0GΩ (initial)
Rated current per contact	30A
Rated voltage	250 V ac

3.Mechanical parameters

Termination	¼ flat tabs
Service life	＞5000 mating cycles
Mounting direction	Rear/Front mounting
Chassis shape	Square G-size flange
Locking device	Latch lock
Layout	four thru holes

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Ag
Insert	Polyamide (PA 66 )
Shell	Zinc diecast,Nickel plating
Flame-retardant grade	UL 94 V-0
Protection class	IP54
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
